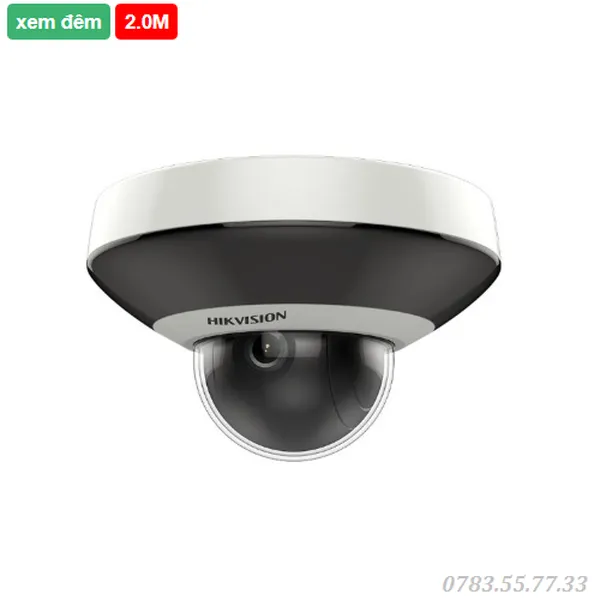

Camera IP Speed Dome 2.0 Megapixel HIKVISION DS-2DE1A200W-DE3
- Cảm biến hình ảnh: 1/3 inch progressive scan CMOS.
- Độ phân giải camera ip: 1920 × 1080@30fps.
- Độ nhạy sáng: Color: 0.005lux/F1.6, B/W: 0.001lux/F1.6.
- Chuẩn nén hình ảnh: H.265+/H.265/H.264+/H.264.
- Zoom số: 16x.
- Góc quay: 0°~330°; góc quét: 0°~90° (Tự động lật).
- Tốc độ quay: 0.1° -100°/s, góc quét: 0.1° -100°/s.
- Chức năng giảm nhiễu số 3D DNR.
- Chức năng quan sát ngày đêm ICR.
- Nguồn cấp: 12VDC & PoE.
Đặc tính kỹ thuật :
|
Model |
DS-2DE1A200W-DE3 |
|
Image Sensor |
1/3 inch progressive scan CMOS |
|
Effective Pixels |
1920(H)x1080(V) |
|
Min. Illumination |
Color: 0.005 Lux @(F1.6, AGC ON) |
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
|
AGC |
Auto/Manual |
|
BLC |
ON/OFF |
|
HLC |
Support |
|
WDR |
120dB |
|
Day & Night |
ICR |
|
Privacy Masking |
24 privacy masks programmable |
|
Auto Focus |
Auto / Semi-automatic / Manual |
|
Digital Zoom |
16x |
|
Lens |
|
|
Focal Length |
2.8 mm, 4 mm, optional |
|
Minimum Working Distance |
2.8 mm: > 0.7 m; 4 mm: > 1 m |
|
Aperture Range |
F1.6 |
|
Pan and Tilt |
|
|
Pan Range |
0° to 330° |
|
Pan Speed |
Configurable, from 0.1°/s to 100°/s, Preset speed: 100°/s |
|
Tilt Range |
-15°~90° (Auto Flip) |
|
Tilt Speed |
Configurable, from 0.1°/s to 80°/s, Preset Speed: 80°/s |
|
Number of Preset |
300 |
|
Proportional Zoom |
Rotation speed can be adjusted automatically according to zoom multiples |
|
Power-off Memory |
Support |
|
PTZ Position Display |
ON/OFF |
|
Input & Output |
|
|
Audio Input |
1-ch audio input |
|
Audio Output |
1-ch audio input |
|
Network |
|
|
Ethernet |
10Base -T, /100Base-TX, RJ45 Connector |
|
Max.Image Resolution |
1920×1080 |
|
Audio Compression |
G.711alaw/ G.711ulaw/ G.722.1/ G.726/ MP2L2/ PCM |
|
Three-Stream |
Support |
|
Storage |
Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
|
User/Host |
Up to 32 users, 3 levels: Administrator, Operator and User |
|
General |
|
|
Power supply |
24 VAC & Hi-PoE |
|
Consumption |
Max.: 12W |
|
Material |
Aluminum alloy, PC, PC+ABS |
|
Weather Proof |
IP66 |
|
Dimensions |
Φ 124.3 × 76.9 mm |
|
Weight |
450 g |
- Bảo hành: 24 tháng.
